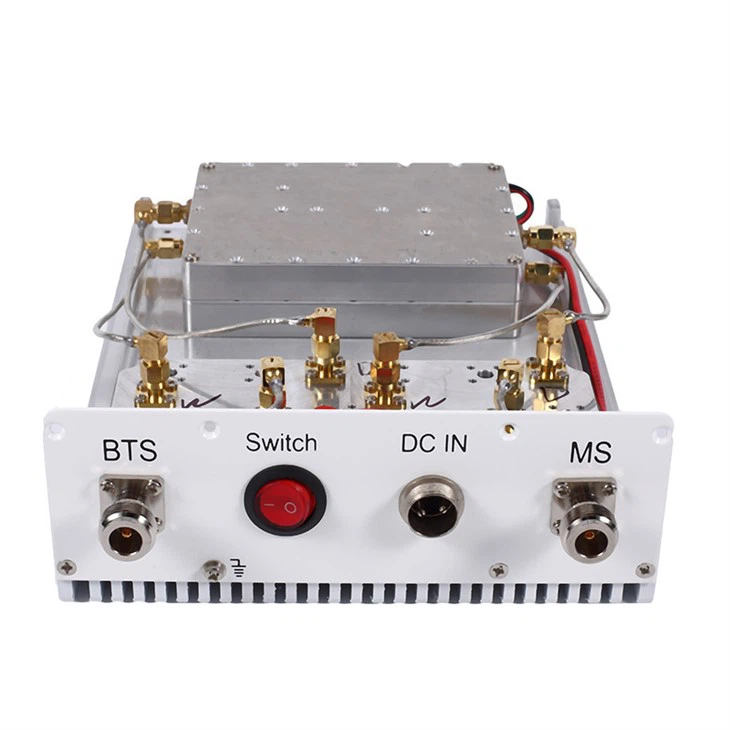

Raygnal Cell Band Selective Repeaters can help mobile carriers extend the range of their distinctive frequencies. The Repeaters are capable of managing two sub bands of 2G and 3G frequency in order to enhance operators' networks. Due to the repeater installation's enhanced out-band rejection, operators will also benefit from its successful performance.
To provide low power consumption but good heat dissipation, engineers also designed fashionable closets for repeaters. AGC, MGC, and Auto Mute capabilities, which have been designed to protect repeaters even if they significantly self-oscillate, are a few crucial elements that ensure repeaters run in a stable environment. In order to assure that all installed devices will be monitored, using remote control monitoring software is also quite practical.
Features
1. MGC available for both UL & DL.
2. AGC Alarms if interference occurs.
3. Auto shut off once severe self-oscillation.
4. Intelligent mode setting.
6. Antenna isolation testing automatically.
7. High voice quality and fast data transmission.
8. Ideal solution for operators.
Specs
|
Parameters |
Uplink |
Downlink |
|
|
Frequency Range |
LTE800 |
832 ~ 862MHz |
791 ~ 821MHz |
|
GSM&EGSM |
880 ~ 915MHz |
925 ~ 960MHz |
|
|
DCS |
1710 ~ 1785MHz |
1805 ~ 1880MHz |
|
|
WCDMA |
1920 ~ 1980MHz |
2110 ~ 2170MHz |
|
|
LTE2600 |
2500~2570MHz |
2620 ~ 2690MHz |
|
|
Bandwidth |
various bandwidth is available upon request |
||
|
Maximum Gain |
≥ 60dB |
≥ 65dB |
|
|
Output Power |
≥ 10dBm |
≥ 15dBm |
|
|
MGC (Manual Gain Control) |
31dB |
||
|
AGC (Automatic Gain Control) |
≧ 25dB |
||
|
Spurious Emission |
9KHz~1GHz |
≦ -36dBm |
|
|
1GHz~12.75GHz |
≦ -30dBm |
||
|
Inter-modulation Products |
9KHz~1GHz |
≦ -36dBm |
|
|
1GHz~12.75GHz |
≦ -30dBm |
||
|
Noise Figure |
≦ 6dB |
||
|
Out of Band Gain |
±400KHz |
< 50dB |
|
|
±600KHz |
< 40dB |
||
|
±1MHz |
< 35dB |
||
|
±5MHz |
< 25dB |
||
|
VSWR |
≦ 2.0 |
||
|
Group Delay |
≦1μs |
||
|
LED Alarm |
Power LED |
DC ON/OFF |
|
|
AGC LED |
Alarm Red when ALC control over 10dB |
||
|
ISO LED |
Alarm turns Red when ALC≥25dB, RF stop working |
||
|
RF Connector |
N-Female |
||
|
Impedance |
50Ω |
||
|
Power Consumption |
25W |
||
|

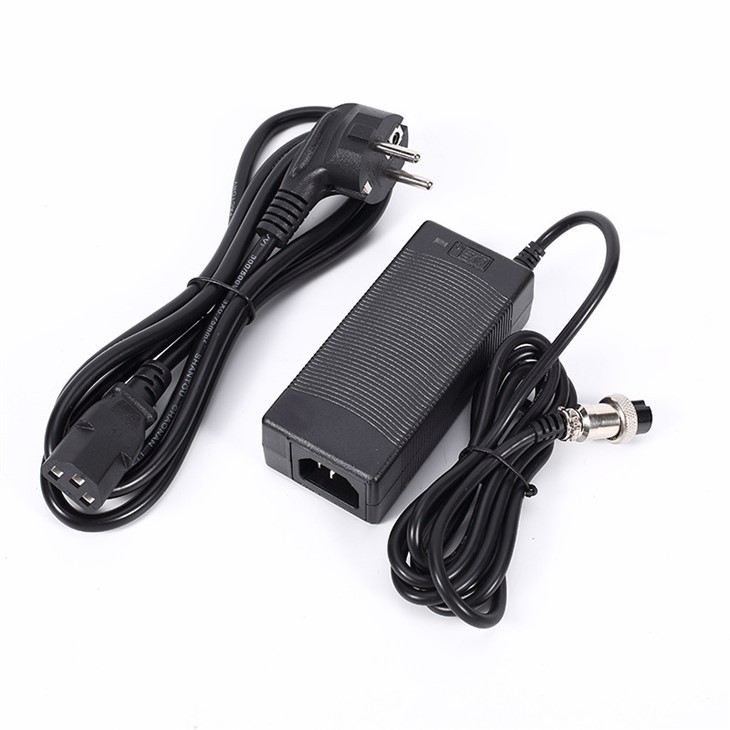

Power Supply |
Input: AC 110~240V; Output: DC 5.9V/3A |
||
|
Operating Temperature |
-10℃~50℃ |
||
|
Environment Conditions |
IP30 |
||
|
Dimensions (Lx W x H) |
128*170*65mm |
||
|
Weight (N.W) |
≤1.5KG |
||
