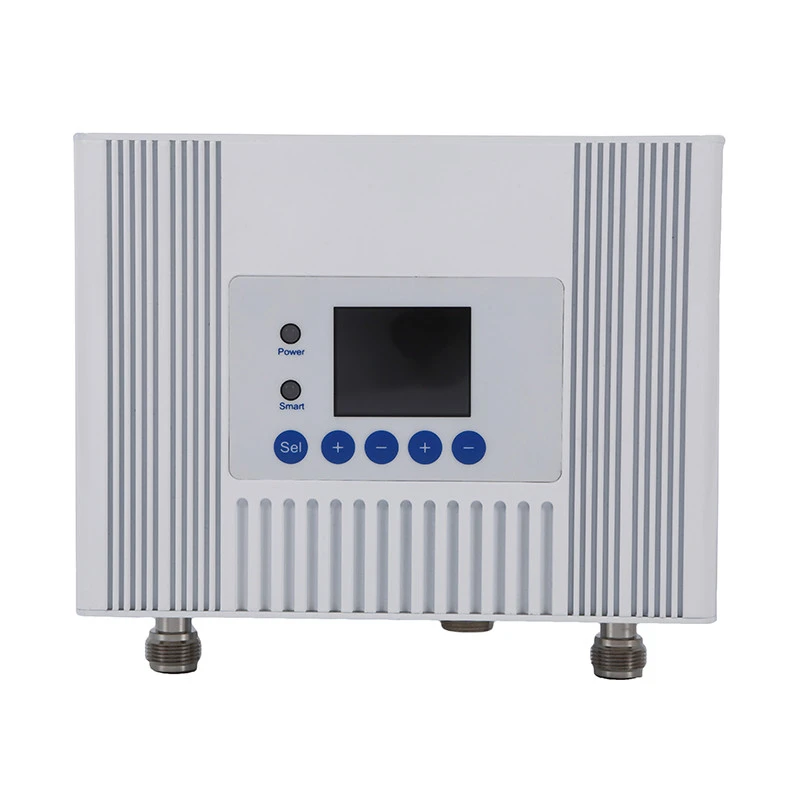

Band Selective Repeater Division

A band selective repeater, commonly referred to as a cell phone signal booster, is a tool that aids in boosting flimsy cell phone signals in locations with low signal strength.

Description

A band selective repeater, commonly referred to as a cell phone signal booster, is a tool that aids in boosting flimsy cell phone signals in locations with low signal strength. Using a mobile signal enhancer may provide the following advantages:



1. Better call quality: If the signal is weak where you are, you can experience dropped calls, crappy call quality, or calls that don't connect at all. For better calls and fewer dropped calls, a mobile signal booster can assist strengthen the signal.



2. Faster data speeds: In addition to enhancing call quality, a mobile signal booster can help speed up your internet connection. You might be able to use apps that require a strong connection and stream videos without buffering more rapidly with a stronger signal.



For anyone who needs to strengthen their cell phone signal, whether for personal or professional use, a band selective repeater can be a handy tool. A band selective repeater can only magnify an existing signal; it cannot produce a signal where one does not already exist.



Features



1. MGC available for both UL & DL.

2. AGC Alarms if interference occurs.

3. Auto shut off once severe self-oscillation.

4. Intelligent mode setting.

6. Antenna isolation testing automatically.

7. High voice quality and fast data transmission.

8. Ideal solution for operators.



Specs



Parameters

Uplink

Downlink

Frequency Range

LTE800

832 ~ 862MHz

791 ~ 821MHz

GSM&EGSM

880 ~ 915MHz

925 ~ 960MHz

DCS

1710 ~ 1785MHz

1805 ~ 1880MHz

WCDMA

1920 ~ 1980MHz

2110 ~ 2170MHz

LTE2600

2500~2570MHz

2620 ~ 2690MHz

Bandwidth

various bandwidth is available upon request

Maximum Gain

≥ 60dB

≥ 70dB

Output Power

≥ 10dBm

≥ 20dBm

MGC (Manual Gain Control)

31dB

AGC (Automatic Gain Control)

≧ 25dB

Spurious Emission

9KHz~1GHz

≦ -36dBm

1GHz~12.75GHz

≦ -30dBm

Inter-modulation Products

9KHz~1GHz

≦ -36dBm

1GHz~12.75GHz

≦ -30dBm

Noise Figure

≦ 6dB

Out of Band Gain

±400KHz

< 50dB

±600KHz

< 40dB

±1MHz

< 35dB

±5MHz

< 25dB

VSWR

≦ 2.0

Group Delay

≦1μs

LED Alarm

Power LED

DC ON/OFF

AGC LED

Alarm Red when ALC control over 10dB

ISO LED

Alarm turns Red when ALC≥25dB, RF stop working

RF Connector

N-Female

Impedance

50Ω

Power Consumption

25W

Power Supply

Input: AC 110~240V; Output: DC 5.9V/3A

Operating Temperature

-10℃~50℃

Environment Conditions

IP30

Dimensions (Lx W x H)

128*170*65mm

Weight (N.W)

≤1.5KG
