Lora Helium Miner Hotspot Flarm Booster
Technology is growing fast because of innovation. With this in mind, Raygnal was launched. The company's main products include passive component, cavity couplers, fixed wireless phone, fixed wireless terminal, lora helium miner hotspot flarm booster, etc.
-
![Two-Way Signal Amplifier]()
Two-Way Signal AmplifierRead MoreThe 868MHz Helium Signal Amplifier works as a receive per-amplifier with RX and TX.Boosting automatically. It is a good helper to optimize LORA network for helium miners. Specific working frequency
-
![Lora Signal Booster]()
Lora Signal BoosterRead MoreThe 868MHz Helium Signal Amplifier works as a receive pre-amplifier with RX and TX Boosting automatically. It is a good helper to optimize LORA network for helium miners. Specific working frequency
-
![Helium Miner Flarm Booster]()
Helium Miner Flarm BoosterRead MoreThe 868MHz Helium Signal Amplifier works as a receive per-amplifier with RX and TX.Boosting automatically. It is a good helper to optimize LORA network for helium miners. Specific working frequency
-
![Helium Bi-Directional Amplifier]()
Helium Bi-Directional AmplifierRead MoreThe 868MHz Helium Signal Amplifier works as a receive pre-amplifier with RX and TX Boosting automatically. It is a good helper to optimize LORA network for helium miners. Specific working frequency
-
![Helium Signal Booster]()
Helium Signal BoosterRead MoreThe 915MHz Helium Signal Amplifier works as a receive pre-amplifier with RX and TX Boosting automatically. It is a good helper to optimize LORA network for helium miners. Specific working frequency
-
![Helium Miner Signal Extender]()
Helium Miner Signal ExtenderRead MoreThe 915MHz Helium Signal Amplifier works as a receive per-amplifier with RX and TX.Boosting automatically. It is a good helper to optimize LORA network for helium miners. Specific working frequency
-
![Helium Miner Signal Amplifier]()
Helium Miner Signal AmplifierRead MoreThe 915MHz Helium Signal Amplifier works as a receive per-amplifier with RX and TX.Boosting automatically. It is a good helper to optimize LORA network for helium miners. Specific working frequency
-
![Lora Helium Miner Signal Extender]()
Lora Helium Miner Signal ExtenderRead MoreThe 915MHz Helium Signal Amplifier works as a receive per-amplifier with RX and TX.Boosting automatically. It is a good helper to optimize LORA network for helium miners. Specific working frequency
-
![868MHz Cavity Filter]()
868MHz Cavity FilterRead MoreThe 868MHz Cavity Filter operates from 864-871MHz with a 7MHz bandwidth and uses for Helium Network.Low insertion loss and a good out-of-band suppression at 10MHz from a distance of side frequency.
-
![915MHz Cavity Filter]()
915MHz Cavity FilterRead MoreThe 915MHz Cavity Filter operates from 900-931MHz with a 31MHz bandwidth and uses for Helium Network.Low insertion loss and a good out-of-band suppression at 31MHz from a distance of side frequency.
-
![SMA 2 Way Splitter]()
SMA 2 Way SplitterRead MoreRF coaxial cavity power splitter is a device that divides one input signal into two or more equal power outputs, including two way, three way, four way and even six or eight way.
Why choose us
Comprehensive wireless solutions
As a specialist in telecommunications, Raygnal is a high-tech enterprise which is dedicated to serving cellular network providers and individuals by offering comprehensive wireless solutions worldwide.
Quality assurance
The mission for RaygnalTechnology is to satisfy customers by providing technical consultation as well as innovative telecommunication products, at affordable price along with reliable quality.
R&d team
The company has a professional research and development capability and a research and development team with a leading domestic technical level.
Cheap price
We have a professional purchasing team and costing team, trying to reduce costs and profits, and provide you with a good price.
Types of Lora Helium Miner Hotspot Flarm Booster
The Lora Helium Miner Hotspot Flarm Booster Produced By Our Company Mainly Includes the Following Types:

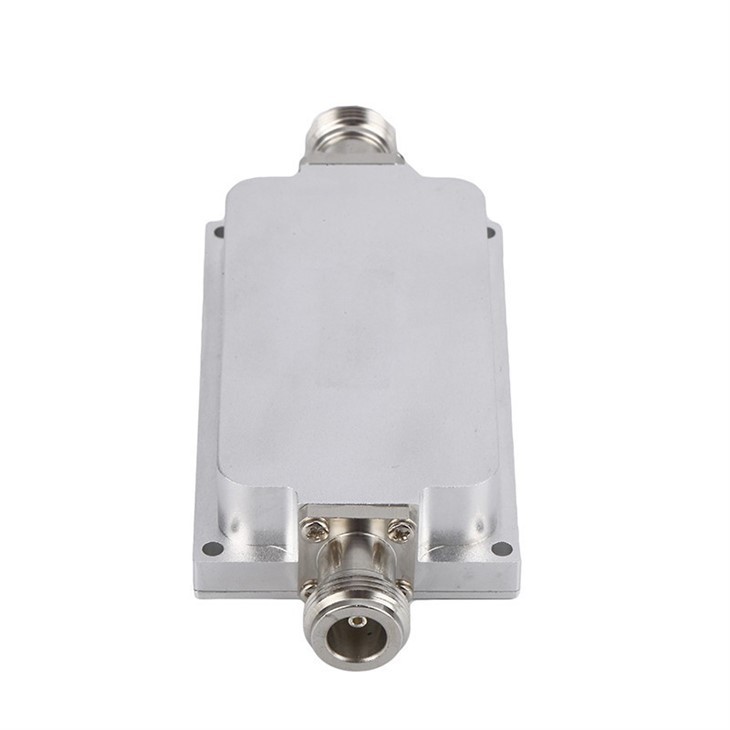

Two-way signal amplifier
Two-way signal amplifiers, also known as Bi-Directional Amplifiers (BDAs), are used to boost and distribute two-way radio signals throughout a facility, particularly in areas with poor reception like stairwells, tunnels, and parking garages, ensuring reliable communication for public safety and other applications.

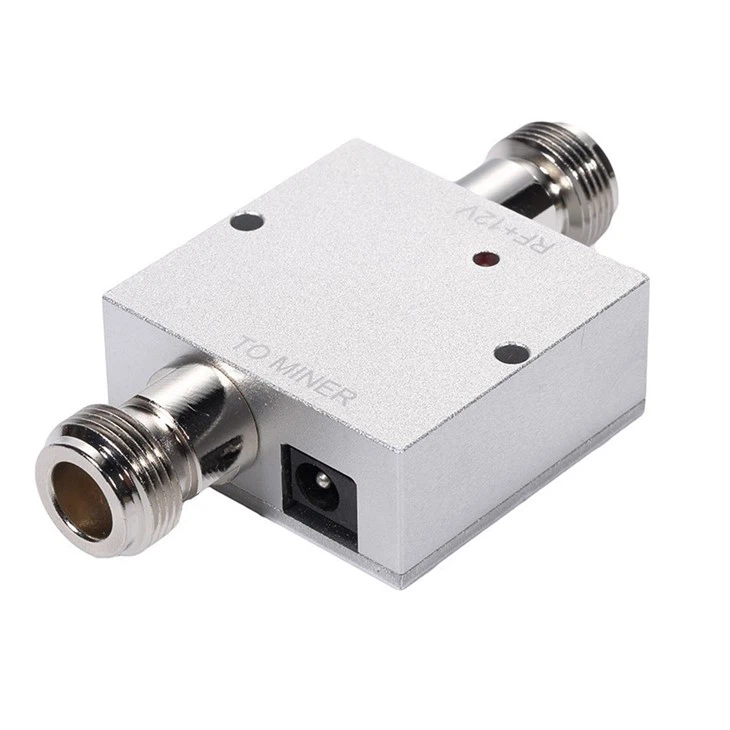

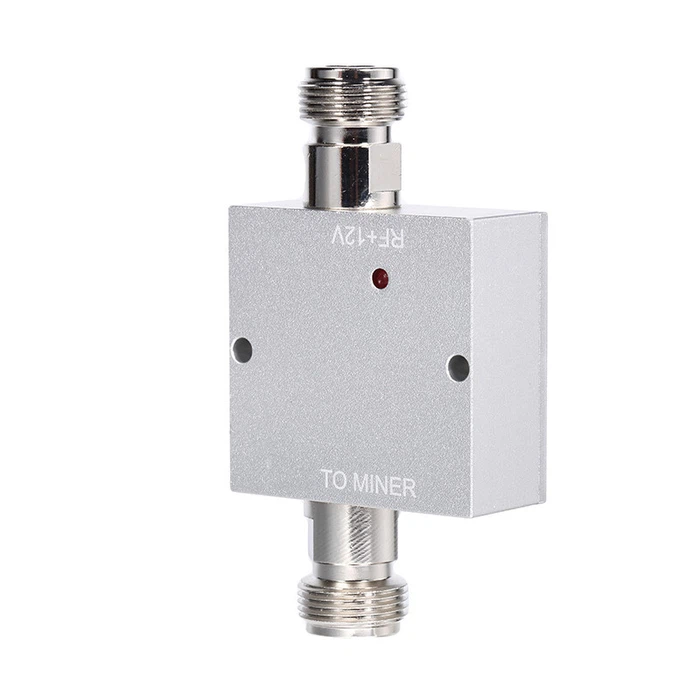

Bias tee
Bias tee is particularly designed to match with Flarm Booster for powering. Small size and elegant shape, makes it is easy to connect with miners directly. It's a good option for clients if it's not convenient to power amplifier with plug outdoor.
Specifications of Lora Helium Miner Hotspot Flarm Booster
Two-way signal amplifier
|
Number |
Items |
Specifications |
|
1 |
Frequency Range |
860-873MHz or 864-878MHz |
|
2 |
Operating Voltage |
5V |
|
3 |
RX Gain |
10-31dB |
|
4 |
TX Gain |
0-13dB |
|
5 |
Max Output Power |
15dBm/30mW |
|
6 |
Noise Figure |
0.9dB |
|
7 |
Current Supply |
100mA |
|
8 |
TX/RX Switch Time Delay |
0.2 µs |
|
9 |
Operating Temperature |
-20°C+70°C |
|
10 |
Storage Temperature |
-20°C+150°C |
|
11 |
Operating Humidity |
Up to 95% rel. humidity |
|
12 |
RF Connector |
Input/output: N-Female |
|
13 |
Power Socket |
Bias Tee |
|
14 |
Dimension |
83*49*20mm |
|
15 |
Material |
Aluminum |
|
16 |
Net Weight |
0.3kg-0.5kg |
Bias tee
|
Number |
Items |
Specifications |
|
1 |
Frequency Range |
600-2000MHz |
|
2 |
Operating Voltage |
5V |
|
3 |
VSWR |
≤1.3dB |
|
4 |
Insertion loss |
≤0.4dB |
|
5 |
Input Power |
≤40dBm |
|
6 |
Max Current |
≤1A |
|
7 |
LED Indicator |
Red@DC≥5V |
|
8 |
Operating Temperature |
-30℃~+70℃ |
|
9 |
Storage Temperature |
-40℃~+150℃ |
|
10 |
RF Connector |
N female or RP SMA |
|
11 |
Power Supply |
5V/1A |
|
12 |
Shell Size |
48*38*17(mm) |
|
13 |
Shell Material |
Aluminum |
|
14 |
Net Weight |
0.10Kg |
Usage of Lora Helium Miner Hotspot Flarm Booster
Two-way signal amplifier
Capturing the signal
When your in-building system is up and running, it seeks out the wireless signal that you are trying to use throughout your building. Your signal often comes from a Donor Antenna on the roof of the building. The distributed antenna system will locate that signal, and capture it—step one, complete.
Amplifying the signal
After the device has located the signal, the next step is for the BDA to amplify it. Imagine being at a venue where a musician is singing on stage. If there's no microphone, it's nearly impossible for people more than a few rows back to hear the song. But, when you add a microphone, their voice (the signal) is “captured” and amplified to the audience (the building).
Redistributing the signal
Just as the speakers at that venue would redistribute the singer’s amplified voice to the entire audience, the bi-directional amplifier redistributes the amplified signal throughout your building. The success of this process directly relates back to the installation of the DAS, as it needs to be strategically placed in order to receive the best signal possible.
Bias tee
RF receiver systems
Bias tees play a crucial role in RF receiver systems, especially those utilizing low-noise amplifiers (LNAs). In this context, a bias tee is employed to provide the necessary DC biasing to the LNA while allowing the RF signal to pass through unaffected. This ensures optimal performance and sensitivity in RF receivers, making bias tees integral components in communication systems, radar systems, and other applications where signal integrity is paramount.
Satellite communication systems
Satellite communication systems often employ bias tees to supply DC power to active antennas or low-noise amplifiers onboard. By combining the RF signal and DC power through a bias tee, satellite systems can efficiently transmit and receive signals without compromising the integrity of the transmitted data. This application is vital for ensuring reliable and continuous communication between ground stations and satellites in orbit.
Fiber optic systems
In fiber optic systems, bias tees find application in providing power to optoelectronic components such as lasers or photodiodes. By using bias tees, these components can receive the necessary DC biasing while allowing the optical signals to pass through unimpeded. This is particularly relevant in telecommunications and data transmission systems where the integration of optical and electronic components is common.
Packaging, Shipping and Payment
1.Use an anti-static bag to extract vacuum for sealing.
2.Use sponge or foam to protect the goods from collision.
3.Finally, use airplane carton to strengthen cargo protection.
The goods will be packed in carton which wrapped all by adhesive tape. In order to lower the freight cost, the volumn of the carton will be compressed without hurting the goods.
FAQ
We're professional lora helium miner hotspot flarm booster manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to wholesale high-grade lora helium miner hotspot flarm booster made in China here from our factory.
