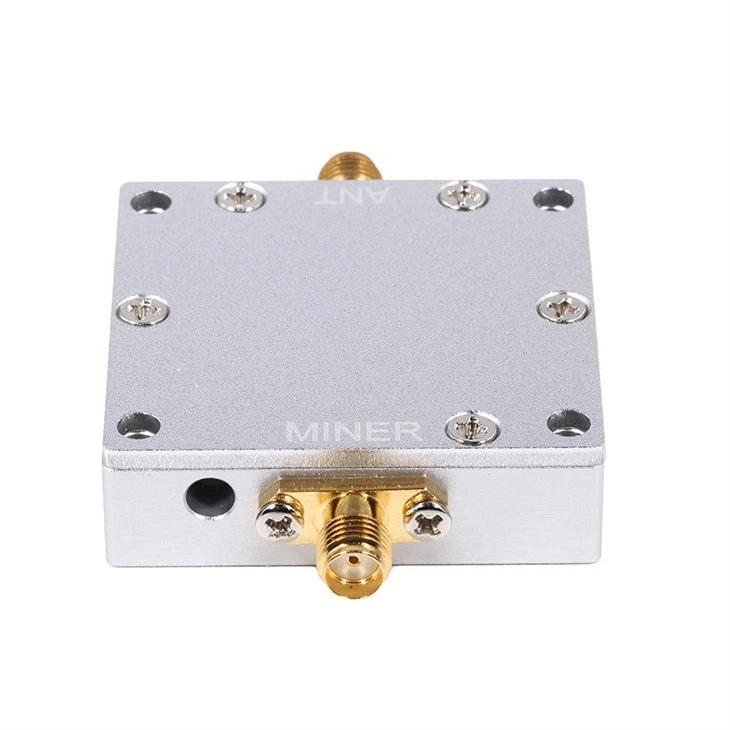

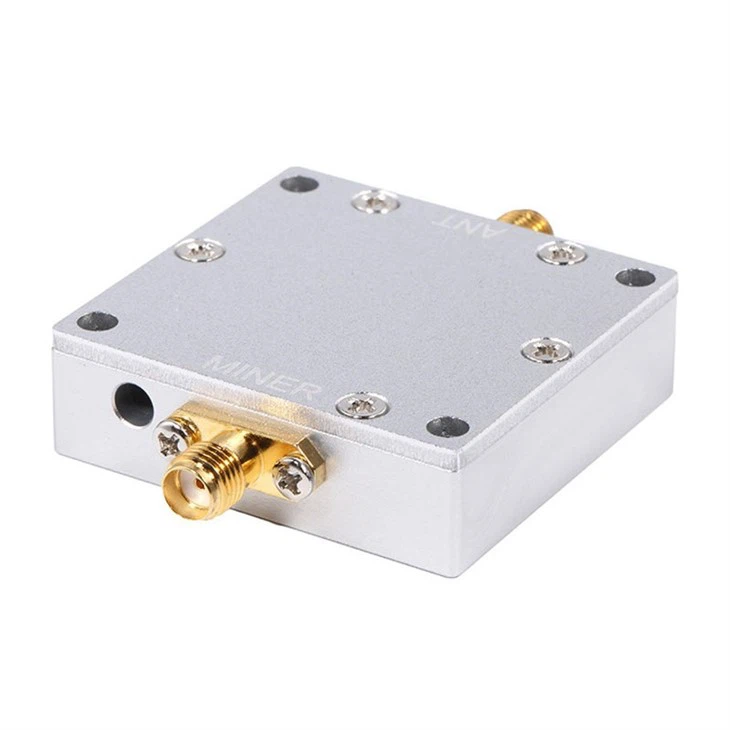

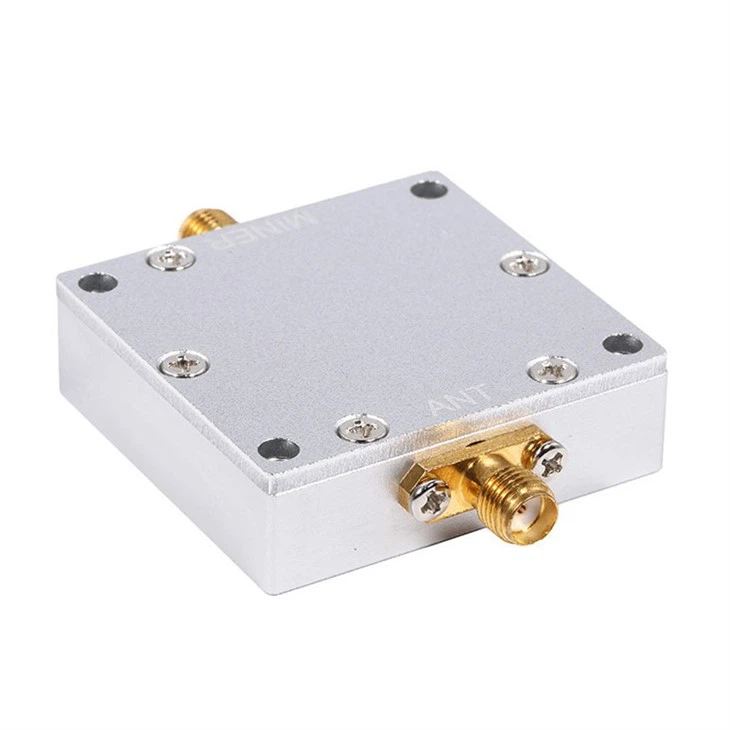

868MHz Miner AMP Bias tee Lora Helium Signal Extender (Bi-directional Amplifier)
The 868MHz Helium Signal Amplifier works as a receive pre-amplifier with RX and TX Boosting automatically. It is a good helper to optimize LORA network for helium miners. Specific working frequency for EU is 860-873MHz or 864-878MHz (868). Power can be supplied via power plug directly or using bias tee over the coax cable. A built in filters avoids inferences with out-of-band signals.
Features
Ultra-low noise
Wide 5V to 15V operating input range
Simply plug and play, easy operation
Plug and play or cable power supply (power can be supplied via attached red/back wire over the RX side coax cable)
Specs
|
Number |
Items |
Specifications |
|
1 |
Frequency Range |
860-873MHz or 864-878MHz |
|
2 |
Operating Voltage |
5V |
|
3 |
Receiving Gain |
10-17dB |
|
4 |
Transmission |
Bypass |
|
5 |
Max Output Power |
15dBm/30mW |
|
8 |
Noise Figure |
0.9dB |
|
9 |
Current Supply |
38mA |
|
10 |
TX/RX Switch Time Delay |
0.2 µs |
|
12 |
Operating Temperature |
-40°C+70°C |
|
13 |
Storage Temperature |
-40°C+150°C |
|
14 |
Operating Humidity |
Up to 95% rel. humidity |
|
15 |
RF Connector |
Input/output: SMA-Female |
|
16 |
Power Socket |
EU/UK/US power plug or USB wire |
|
17 |
Shell size |
40*42*12mm |
|
18 |
Shell Material |
Aluminum |
|
19 |
Net Weight |
0.15kg |
Dimension
Package
1PCS* AMPLIFIER
1PCS* USB wire
1PCS* Power Plug
