Wide Band Signal Booster
Technology is growing fast because of innovation. With this in mind, Raygnal was launched. As a specialist in telecommunications, Raygnal is a high-tech enterprise which is dedicated to serving cellular network providers and individuals by offering comprehensive wireless solutions worldwide.
-
![Mobile Signal Repeater]()
Mobile Signal RepeaterRead MoreMobile Signal Repeaters are able to be tailored by Raygnal to amplify any one of 2G network systems such as GSM900, DCS1800, CDMA850, PCS1900 etc. They are designed to amplify weak cellular signals
-
![GSM Signal Booster]()

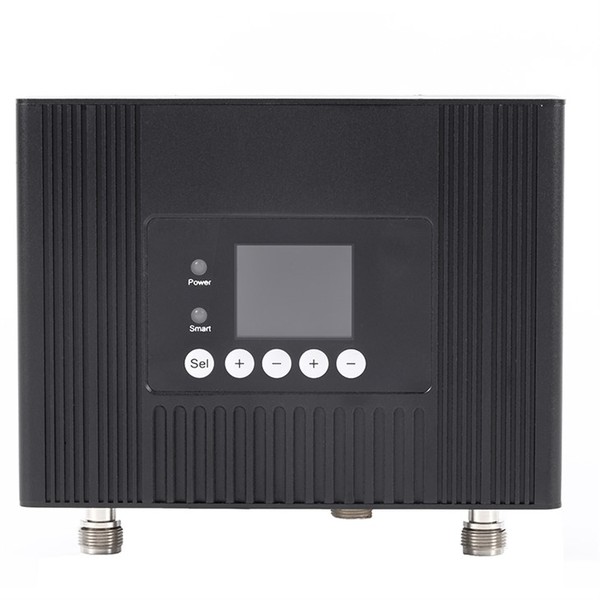

GSM Signal BoosterRead MoreA GSM signal booster can significantly improve the call quality by amplifying the signal strength, thereby reducing the chances of dropped calls and poor audio quality. With stronger signal strength,
-
![5G Signal Booster]()
5G Signal BoosterRead More5G signal booster, also known as signal repeater, is a device used to improve the cell phone reception in areas where the signal is weak or difficult to reach.
-
![Phone Signal Booster]()
Phone Signal BoosterRead MoreAny 2G network system, including GSM900, DCS1800, CDMA850, PCS1900, and others, can be amplified with Raygnal's phone singal boosters. Signal-poor areas, such as the country, the hills, or the
-
![T-Mobile Signal Booster]()
T-Mobile Signal BoosterRead MoreCell phone signal operators (T-Mobile, Telus, Bell, Rogers etc) have a narrow frequency band in which they transmit their signal. Quality signal boosters will be designed to operate in the
-
![Mobile Signal Booster]()
Mobile Signal BoosterRead MoreA mobile signal booster can significantly improve call quality by enhancing the signal strength and reducing the possibility of dropped calls and poor audio. A better signal can increase cellular
-
![Mobile Signal Booster for Home]()
Mobile Signal Booster for HomeRead MoreAny of the 3G network systems, including WCDMA2100, AWS1700, PCS1900, UMTS800, etc., can be amplified by mobile signal boosters made by Raygnal.
-
![4G Signal Booster]()
4G Signal BoosterRead More4G signal booster is a device designed to enhance cell phone reception within its range. The typical range of such boosters is around 4000 square feet. One of the key advantages of a 4G signal
-
![Homemade Cell Phone Signal Booster]()
Homemade Cell Phone Signal BoosterRead MoreBy boosting the signal strength and lowering the likelihood of dropped calls and subpar audio, a homemade cell phone signal booster can considerably enhance call quality.
-
![Cellular Signal Booster]()
Cellular Signal BoosterRead MoreRaygnal's cellular signal boosters can be configured to enhance any 3G network system, including WCDMA2100, AWS1700, PCS1900, UMTS800, and others.
-
![Vodafone Signal Booster]()
Vodafone Signal BoosterRead MoreAny Vodafone network systems, including EGSM900, GSM1800, CDMA800, LTE2600, LTE800, and others, can have its signal boosters from Raygnal adjusted to amplify it. Applications include places with poor
-
![Cell Booster Network Repeater]()
Cell Booster Network RepeaterRead MoreA cell booster is a device that enhances the signal strength of mobile networks. It is also known as a cell phone signal booster or a signal repeater.
Why choose us
R&D team
The company has a professional research and development capability and a research and development team with a leading domestic technical level.
Cheap price
We have a professional purchasing team and costing team, trying to reduce costs and profits, and provide you with a good price.
Quality assurance
In terms of quality assurance, the company strictly follows the standards and norms of the industry quality system. Adopt industry-leading testing equipment to ensure product quality and good reputation.
Professional service
We can accept factory inspection and goods inspection at any time. Technical discussion, research and development of new products, and complete after-sales service.
Types of Wide Band Signal Booster
VHF mobile commercial band antenna
Different types of uhf vhf antenna are available, including whip antennas and ground plane antennas. Whip antennas are popular for mobile applications as they are easily mountable on vehicles or handheld devices. They are often made of flexible materials, such as fiberglass or stainless steel, and come in various lengths to accommodate different frequency bands.
Ground plane antennas are typically used in base station applications where the antenna is mounted on a fixed structure, such as a building or a mast. They consist of a vertical element mounted above a ground plane, which enhances the antenna’s performance by providing a reflective surface. Ground plane antennas offer higher gain and coverage compared to whip antennas.
UHF SATCOM portable antenna
A UHF SATCOM Portable Antenna is explicitly designed for satellite communication applications operating in the UHF frequency range, typically between 300 to 3000 MHz. These antennas allow users to establish communication links with satellites in the UHF frequency band.
UHF SATCOM Portable Antennas are widely used in military, aerospace, and maritime applications. They are designed to provide reliable and secure communication links for voice, data, and video transmission in remote and challenging environments. These antennas are typically lightweight and portable for easy deployment in field operations.
Several types of UHF SATCOM Portable Antennas exist, including helical antennas, log-periodic antennas, and patch antennas. Helical antennas are compact and offer circular polarization, making them suitable for mobile and handheld applications. Log-periodic antennas have a wide frequency range and can provide gain and coverage across multiple UHF frequencies. Patch antennas are often used in satellite communication terminals due to their small form factor and high yield.
Antenna preamplifier / low noise amplifier (LNA)
Auhf antenna Preamplifier, also known as a Low Noise Amplifier (LNA), is an electronic device that amplifies weak signals received by an antenna while introducing minimal additional noise to the movement. LNAs are crucial components in communication systems, including wireless communication, satellite communication, radar systems, and sensitive receivers.
Benefits of Wide Band Signal Booster
Improved call quality
Bad reception often leads to dropped or unclear calls. A signal booster strengthens the signal for better clarity. You can enjoy seamless conversations without interruptions. This is especially helpful in remote or rural areas.
Reliable during emergencies
In emergencies, a stable signal is crucial. A signal booster ensures you can make calls without trouble. This can be a lifesaver in critical situations.
Wider signal coverage
In large homes or offices, some areas may have poor reception. Signal boosters extend coverage to these dead zones. You can move around freely without losing connection.
Better battery life
Phones work harder to connect in weak signal areas. This drains the battery faster. A booster reduces the strain on your device. Eventually, your phone’s battery lasts longer.
Supports multiple devices
A single booster can handle several devices at once. This is perfect for households or offices with multiple users. Everyone can enjoy a stronger and more reliable connection.
Works in remote locations
Many rural areas have poor network coverage. Signal boosters amplify weak signals in such locations. They help you stay connected even in the most isolated places.
Enhances business productivity
A weak signal can disrupt business activities. With a booster, employees can work without connectivity issues. This improves communication and efficiency in the workplace.
Affordable solution for better connectivity
Rather than spending on a different carrier, invest in these devices. It is a cost-effective solution to improve your network. The one-time expense confers long-term merits.
Easy to install and use
Most signal boosters do not need technical expertise to install due to their simple installation process. The user-friendly design makes it convenient for anyone.
Stronger internet connectivity
Slow internet can frustrate anyone. Weak signals often cause buffering and delays. A booster enhances the signal, providing faster speeds. This is beneficial for streaming, gaming, or online meetings.
Specs
|
Parameters |
Uplink |
Downlink |
|
|
Frequency Range |
CDMA800 |
824-849MHz |
869-894MHz |
|
GSM&EGSM |
880 ~ 915MHz |
925 ~ 960MHz |
|
|
DCS |
1710 ~ 1785MHz |
1805 ~ 1880MHz |
|
|
PCS |
1850-1910MHz |
1930-1990MHz |
|
|
Operation Bandwidth (-3dB) |
Wide Band |
||
|
Maximum Gain |
60dB |
65dB |
|
|
Output Power |
10dBm |
15dBm |
|
|
MGC (Manual Gain Control) |
31dB range/1dB step |
||
|
AGC (Automatic Gain Control) |
≧25dB |
||
|
Noise Figure |
≤ 6dB |
||
|
VSWR |
≦2.0 |
||
|
Group Delay |
≤1μs |
||
|
LED Alarm |
Power LED |
DC ON/OFF |
|
|
AGC LED |
Red, ALC≥10dB |
||
|
ISO LED |
Red, ALC≥25dB, RF stop working |
||
|
RF Connector |
N-Female |
||
|
Impedance |
50Ω |
||
|
Power Consumption |
5W |
||
|
Power Supply |
Input: AC 110~240V; Output: DC 5.9V/3A |
||
|
Operating Temperature |
-10℃~50℃ |
||
|
Environment Conditions |
IP30 |
||
|
Dimensions (Lx W x H) |
128*170*65mm |
||
|
Weight (N.W) |
≤1.5KG |
||
