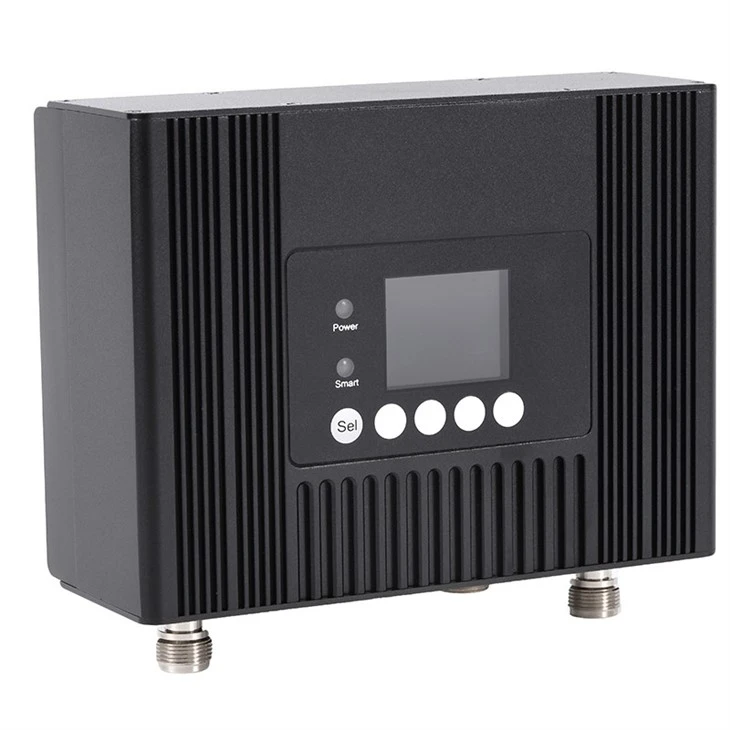

4G Signal Booster

4G signal booster is a device designed to enhance cell phone reception within its range. The typical range of such boosters is around 4000 square feet. One of the key advantages of a 4G signal booster is that it boosts signal strength in areas where cell phone reception is weak, spotty, or nonexistent.

Description

4G signal booster is a device designed to enhance cell phone reception within its range. The typical range of such boosters is around 4000 square feet. One of the key advantages of a 4G signal booster is that it boosts signal strength in areas where cell phone reception is weak, spotty, or nonexistent.



The product offers several benefits, including both automatic and manual gain control, ensuring optimal and consistent signal strength even when different signal strength conditions arise. The automatic gain control, or AGC, is designed to automatically adjust the amplifier’s gain according to the strength of the incoming signal, ensuring that the signal does not become too strong or too weak. The manual gain control, or MGC, can be used to make precise adjustments to the amplifier’s gain if necessary.



The 4G signal booster also features an automatic shut-off function that ensures the device turns off when there is no signal present, saving power and extending the lifespan of the amplifier. Furthermore, due to the advanced technology used in the amplifier, it is capable of providing enhanced data speeds, improved call quality, and fewer dropped calls.



Features



1. Compact size with stable performance.

2. MGC available for both UL & DL.

3. AGC Alarms if interference occurs.

4. Auto shut off once severe self-oscillation.

5. LCD display to make operation easily.

6. Cost-effective for practical solutions.

7. Antenna isolation testing automatically.

8. High voice quality and fast data transmission.

9. Simple Structure & Easy installation.



Specs



Parameters

Uplink

Downlink

Frequency Range

UMTS800

830-840MHz

875-885MHz

WCDMA2100

1920~ 1980MHz

2110~ 2170MHz

AWS1700

1710 ~ 1755MHz

2110 ~ 2155MHz

PCS1900

1850-1910MHz

1930-1990MHz

Operation Bandwidth (-3dB)

Wide Band

Maximum Gain

55dB

60dB

Output Power

10dBm

10dBm

MGC (Manual Gain Control)

31dB range/1dB step

AGC (Automatic Gain Control)

≧25dB

Noise Figure

≤ 6dB

VSWR

≦2.0

Group Delay

≤1μs

LED Alarm

Power LED

DC ON/OFF

AGC LED

Red, ALC≥10dB

ISO LED

Red, ALC≥25dB, RF stop working

RF Connector

N-Female

Impedance

50Ω

Power Consumption

5W

Power Supply

Input: AC 110~240V; Output: DC 5.9V/3A

Operating Temperature

-10℃~50℃

Environment Conditions

IP30

Dimensions (Lx W x H)

128*170*65mm

Weight (N.W)

≤1.5KG

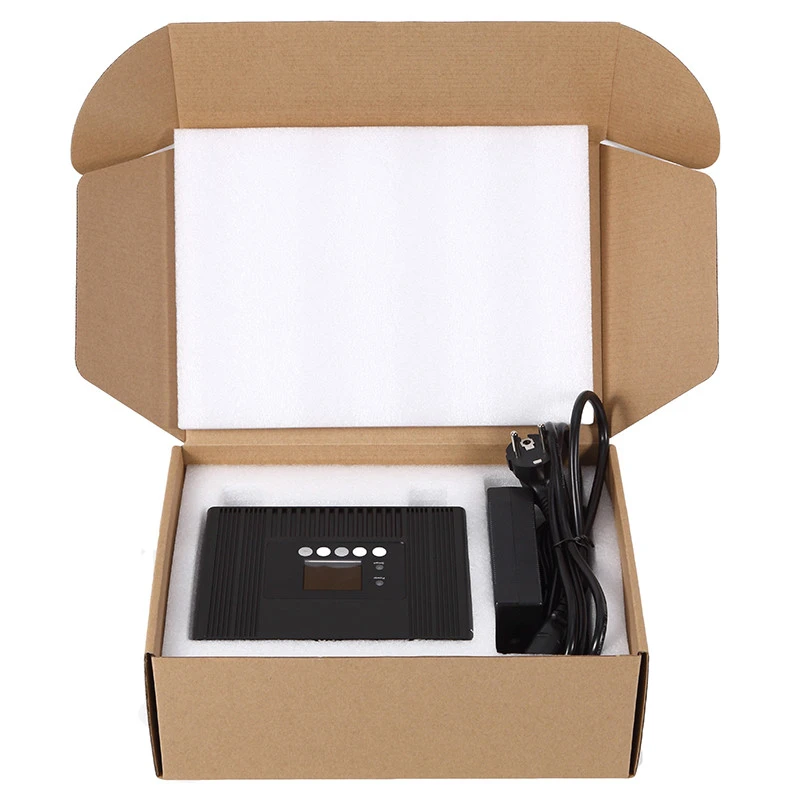

product-800-800
product-800-800
product-800-800
product-800-800
product-800-800
product-800-800
