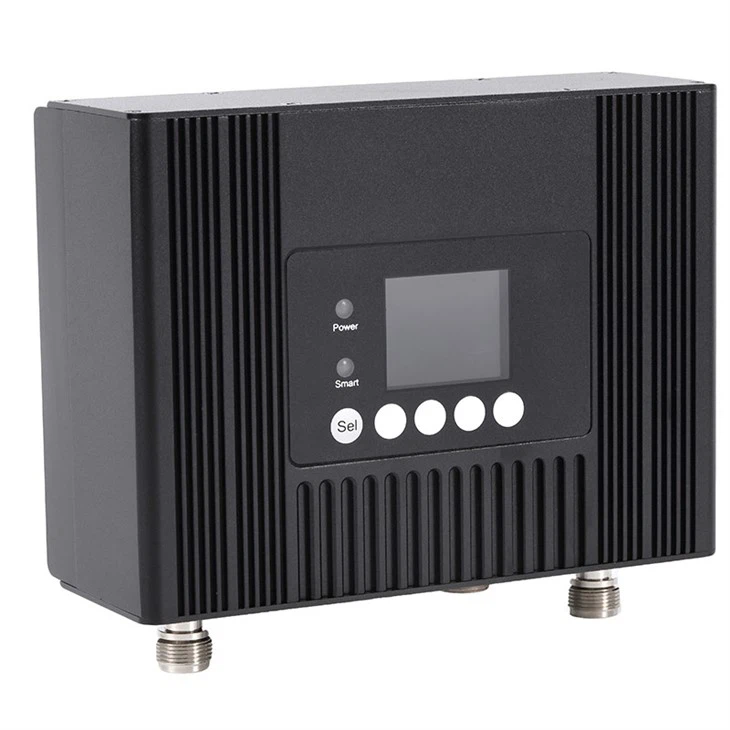

A 4G mobile signal booster acts by receiving signals in the transmit and receive bands of cellular networks from a base station and then re-transmitting them, typically at a higher power. The goal of these devices is to improve the signal strength received by a cell phone in low signal strength areas - so the booster may be placed a little higher up or in part of the house/building where the signal can be received better, and the cellphone may normally be in an area of worse reception. Note that the quality of the signal (error rate) might not be improved. The cellphone receives the boosted signal and responds to it towards the booster, which in turn rebroadcasts back towards the cellular network.

The max coverage area for 4G mobile signal booster is 3000 square meters.

Features

1. MGC available for both UL & DL.

2. AGC Alarms if interference occurs.

3. Auto shut off once severe self-oscillation.

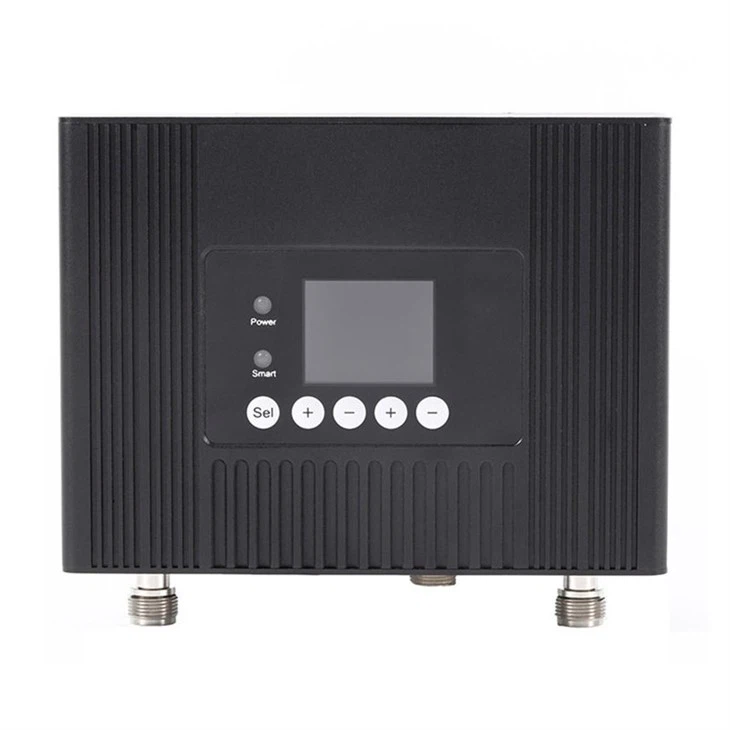

4. LCD display to make operation easily.

5. Cost-effective for practical solutions.

6. Antenna isolation testing automatically.

7. High voice quality and fast data transmission.

8. Good Heat-dissipation.

Specs

Parameters		Uplink	Downlink
Frequency Range	LTE800	832 ~ 862MHz	791 ~ 821MHz
	CDMA800	824-849MHz	869-894MHz
	GSM&EGSM	880 ~ 915MHz	925 ~ 960MHz
	DCS	1710 ~ 1785MHz	1805 ~ 1880MHz
	PCS	1850-1910MHz	1930-1990MHz
	WCDMA	1920 ~ 1980MHz	2110 ~ 2170MHz
	LTE2600	2500~2570MHz	2620 ~ 2690MHz
Operation Bandwidth (-3dB)		Wide Band
Maximum Gain		60dB	65dB
Output Power		10dBm	10dBm
MGC (Manual Gain Control)		31dB range/1dB step
AGC (Automatic Gain Control)		≧25dB
Spurious Emission	9KHz~1GHz	≦-36dBm
	1GHz~12.75GHz	≦-30dBm
Noise Figure		≤ 6dB
VSWR		≦2.0
Group Delay		≤1μs
LED Alarm	Power LED	DC ON/OFF
	AGC LED	Red, ALC≥10dB
	ISO LED	Red, ALC≥25dB, RF stop working
RF Connector		N-Female
Impedance		50Ω
Power Consumption		5W

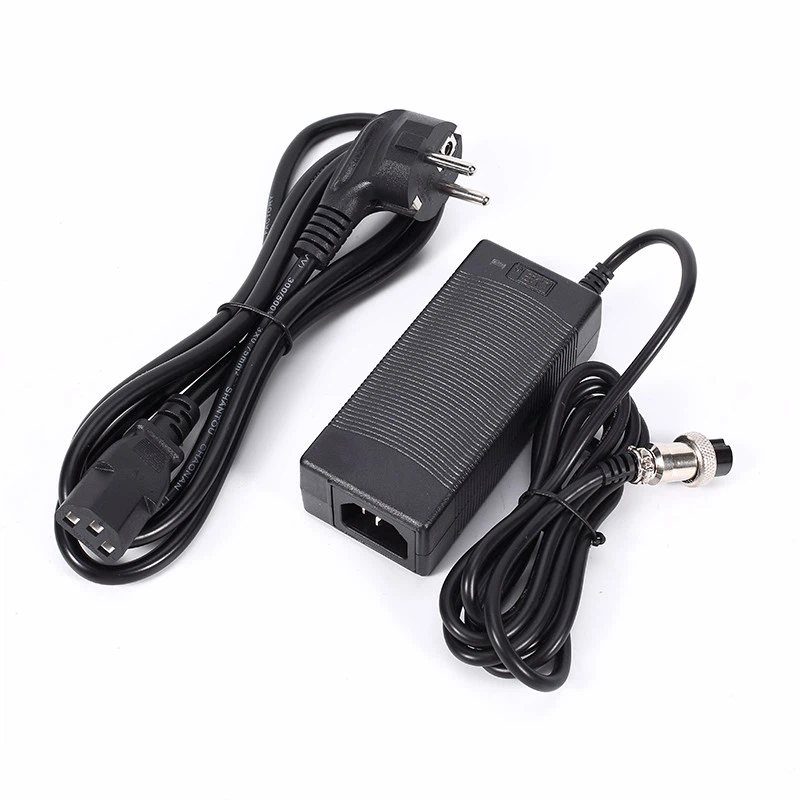

Power Supply		Input: AC 110~240V; Output: DC 5.9V/3A
Operating Temperature		-10℃~50℃
Environment Conditions		IP30
Dimensions (Lx W x H)		12817065mm
Weight (N.W)		≤1.9KG
