Cell phone signal boosters work by amplifying and enhancing weak signals that are received by your phone. The signal booster contains an amplifier that increases the signal reception and transmission capabilities of your phone. The booster receives incoming signals from the cell tower and then amplifies them, allowing you to have better reception and a stronger signal. The amplified signal is then transmitted to your phone via an antenna attached to the device. The result is stronger, more reliable signal strength, and better call quality.

Cell phone signal Boosters are particularly useful in areas where there are poor signal reception such as in rural areas, inside buildings, or in underground parking lots.

Features

1. MGC available for both UL & DL.

2. AGC Alarms if interference occurs.

3. Auto shut off once severe self-oscillation.

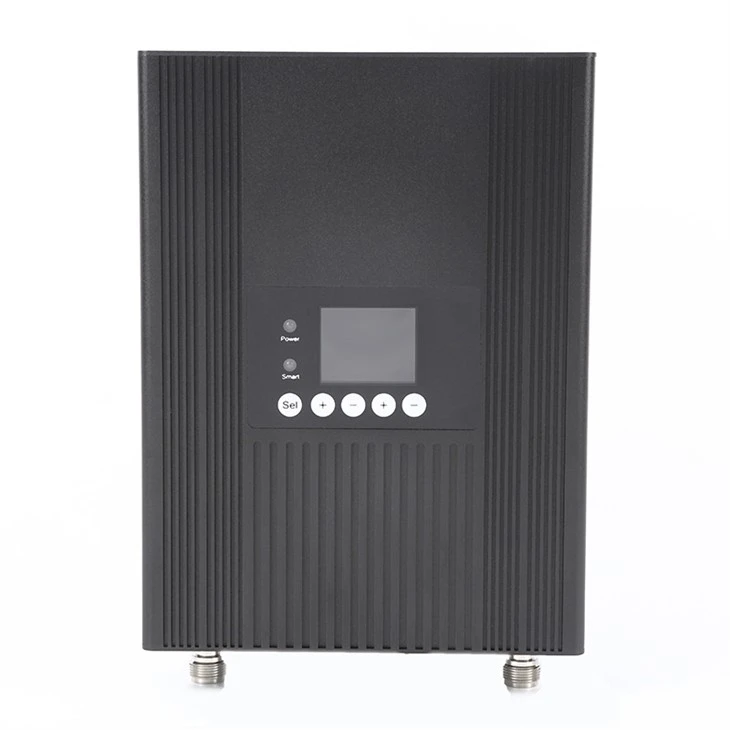

4. LCD display to make operation easily.

5. Cost-effective for practical solutions.

6. Antenna isolation testing automatically.

7. High voice quality and fast data transmission.

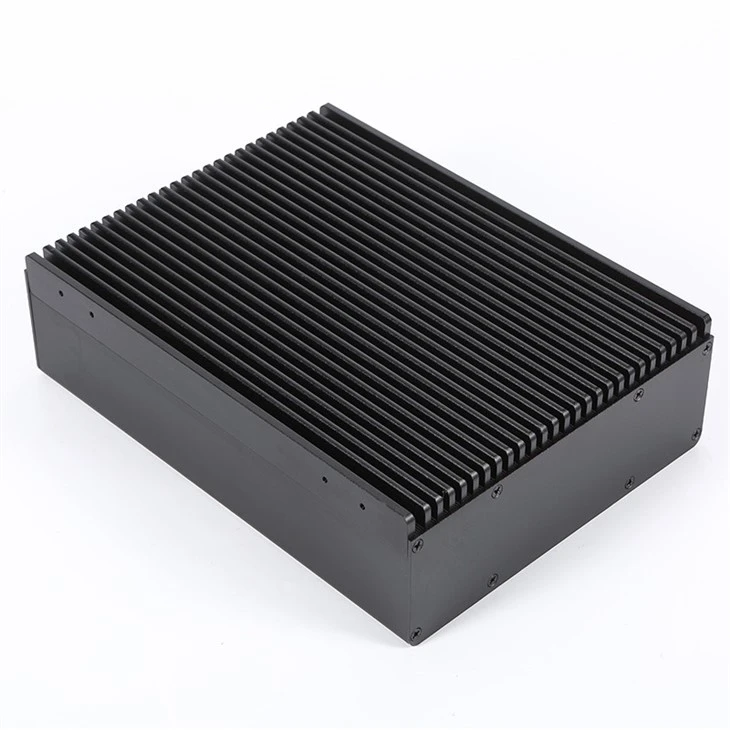

8. Good Heat-dissipation.

Specs

Parameters		Uplink	Downlink
Frequency Range	CDMA800	824-849MHz	869-894MHz
	GSM&EGSM	880 ~ 915MHz	925 ~ 960MHz
	DCS	1710 ~ 1785MHz	1805 ~ 1880MHz
	PCS	1850-1910MHz	1930-1990MHz
Operation Bandwidth (-3dB)		Wide Band
Maximum Gain		75dB	80dB
Output Power		20dBm	27dBm
MGC (Manual Gain Control)		31dB range/1dB step
AGC (Automatic Gain Control)		≧25dB
Spurious Emission	9KHz~1GHz	≦-36dBm
	1GHz~12.75GHz	≦-30dBm
Noise Figure		≤ 6dB
VSWR		≦2.0
Group Delay		≤1μs
LED Alarm	Power LED	DC ON/OFF
	AGC LED	Red, ALC≥10dB
	ISO LED	Red, ALC≥25dB, RF stop working
RF Connector		N-Female
Impedance		50Ω
Power Consumption		5W
Power Supply		Input: AC 110~240V; Output: DC 9V/5A
Operating Temperature		-10℃~50℃
Environment Conditions		IP30
Dimensions (Lx W x H)		22817065mm
Weight (N.W)		≤3KG
