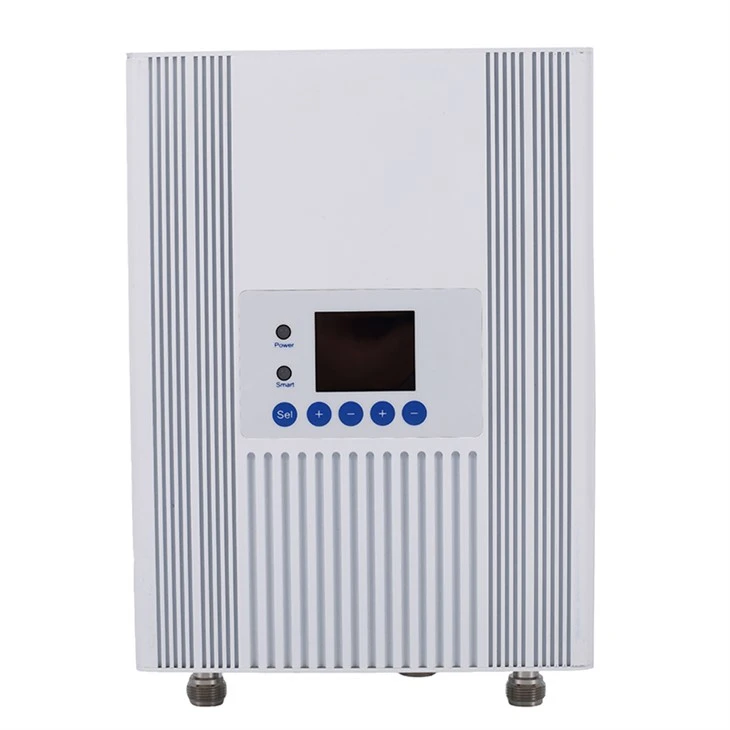

A mobile signal booster can significantly improve call quality by enhancing the signal strength and reducing the possibility of dropped calls and poor audio. A better signal can increase cellular data speeds, allowing for faster downloads, faster streaming, and more trustworthy browsing.

If you live or work in a locale with spotty service, a mobile signal booster can help extend the cellular signal's range, increasing coverage at your home or place of business. Instead of purchasing a more expensive data or voice plan with better coverage, the mobile signal booster may be a more cost-effective way to improve signal strength and coverage.

Most moible signal boosters are straightforward to install and don't require a lot of technical knowledge. They are useful for use in vehicles and while traveling because options are even available that don't require installation.

Features

1. Compact size with stable performance.

2. MGC available for both UL & DL.

3. AGC Alarms if interference occurs.

4. Auto shut off once severe self-oscillation.

5. LCD display to make operation easily.

6. Cost-effective for practical solutions.

7. Antenna isolation testing automatically.

8. High voice quality and fast data transmission.

9. Simple Structure & Easy installation.

Specs

Parameters		Uplink	Downlink
Frequency Range	CDMA800	824-849MHz	869-894MHz
	GSM&EGSM	880 ~ 915MHz	925 ~ 960MHz
	DCS	1710 ~ 1785MHz	1805 ~ 1880MHz
	PCS	1850-1910MHz	1930-1990MHz
Operation Bandwidth (-3dB)		Wide Band
Maximum Gain		70dB	75dB
Output Power		20dBm	27dBm
MGC (Manual Gain Control)		31dB range/1dB step
AGC (Automatic Gain Control)		≧25dB
Noise Figure		≤ 6dB
VSWR		≦2.0
Group Delay		≤1μs
LED Alarm	Power LED	DC ON/OFF
	AGC LED	Red, ALC≥10dB
	ISO LED	Red, ALC≥25dB, RF stop working
RF Connector		N-Female
Impedance		50Ω
Power Consumption		5W

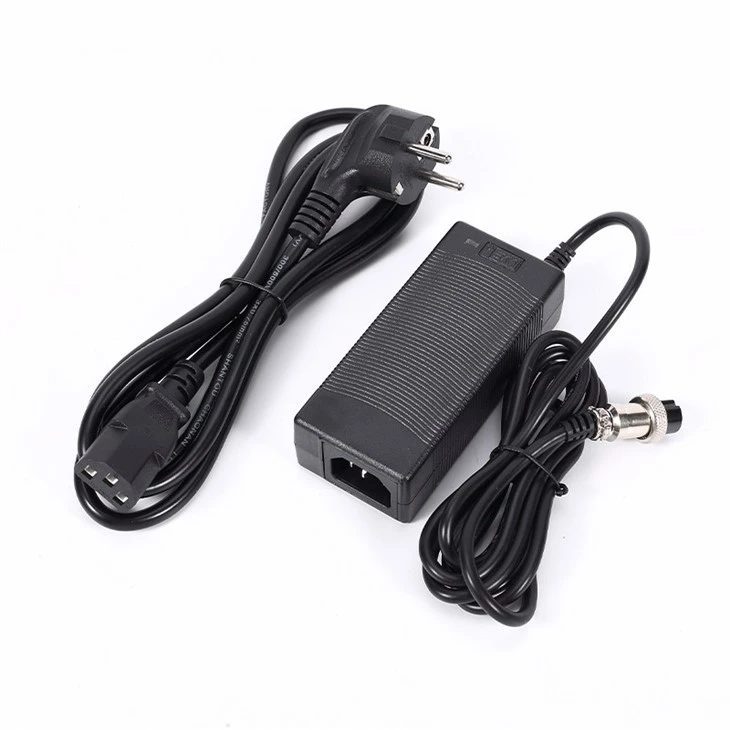

Power Supply		Input: AC 110~240V; Output: DC 5.9V/3A
Operating Temperature		-10℃~50℃
Environment Conditions		IP30
Dimensions (Lx W x H)		12817065mm
Weight (N.W)		≤1.5KG
