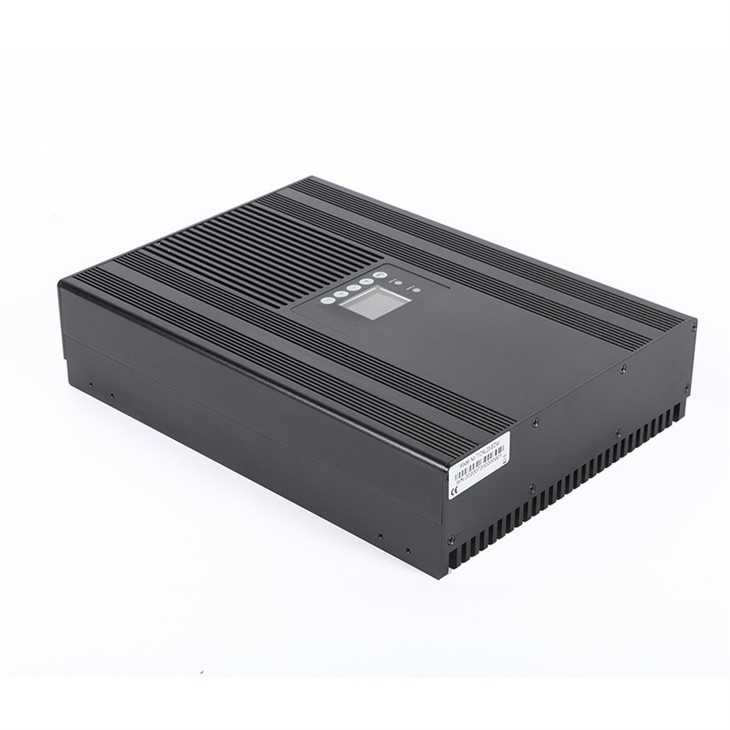

The exterior or donor antenna, the amplifier, and the indoor antenna are the three essential components of a GSM band selective repeater. An interior antenna distributes the signal to and from a mobile phone, whereas the donor antenna sends and receives signals from the tower. Signals from the tower to the phone as well as signals from the phone to the tower are amplified by the amplifier, also known as a bi-directional amplifier (BDA) or repeater. A coaxial connection links the donor and indoor antennae to the amplifier. A splitter is unquestionably essential for deployment if you want to split the signals among many indoor locations.

Features

1. MGC available for both UL & DL.

2. AGC Alarms if interference occurs.

3. Auto shut off once severe self-oscillation.

4. Intelligent mode setting.

6. Antenna isolation testing automatically.

7. High voice quality and fast data transmission.

8. Ideal solution for operators.

Specs

Parameters		Uplink	Downlink
Frequency Range	LTE800	832 ~ 862MHz	791 ~ 821MHz
	GSM&EGSM	880 ~ 915MHz	925 ~ 960MHz
	CDMA800	824~849MHz	869~894MHz
	DCS	1710 ~ 1785MHz	1805 ~ 1880MHz
	WCDMA	1920 ~ 1980MHz	2110 ~ 2170MHz
	LTE2600	2500~2570MHz	2620 ~ 2690MHz
Bandwidth		various bandwidth is available upon request
Maximum Gain		≥ 60dB	≥ 65dB
Output Power		≥ 10dBm	≥ 10dBm
MGC (Manual Gain Control)		31dB
AGC (Automatic Gain Control)		≧ 25dB
Spurious Emission	9KHz~1GHz	≦ -36dBm
	1GHz~12.75GHz	≦ -30dBm
Inter-modulation Products	9KHz~1GHz	≦ -36dBm
	1GHz~12.75GHz	≦ -30dBm
Noise Figure		≦ 6dB
Out of Band Gain		±400KHz	< 50dB
		±600KHz	< 40dB
		±1MHz	< 35dB
		±5MHz	< 25dB
VSWR		≦ 2.0
Group Delay		≦1μs
LED Alarm	Power LED	DC ON/OFF
	AGC LED	Alarm Red when ALC control over 10dB
	ISO LED	Alarm turns Red when ALC≥25dB, RF stop working
RF Connector		N-Female
Impedance		50Ω
Power Consumption		25W
Power Supply		Input: AC 110~240V; Output: DC 9V/5A
Operating Temperature		-10℃~50℃
Environment Conditions		IP30
Dimensions (Lx W x H)		22817065mm
Weight (N.W)		≤5KG
