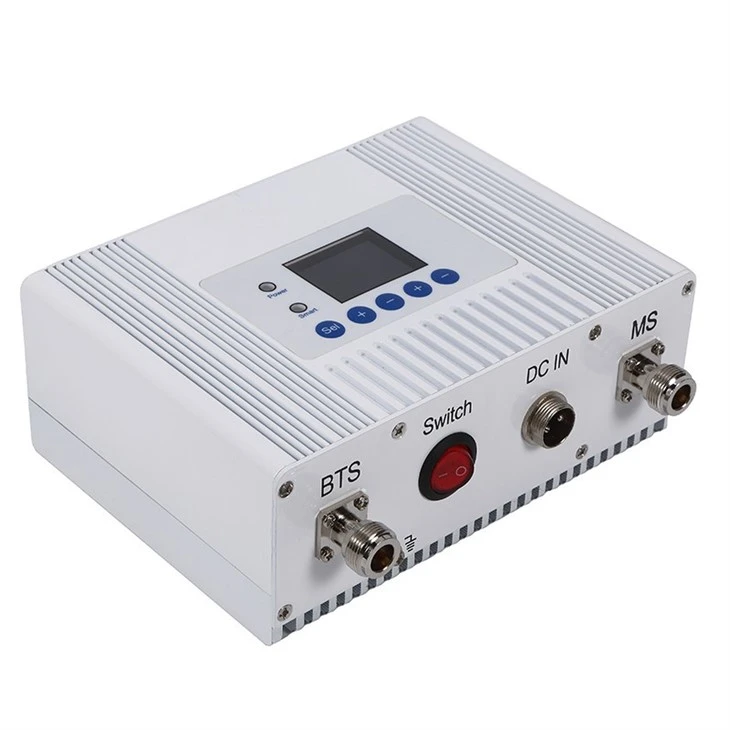

Cell Phone Signal Boosters are possible to be customized by Raygnal to magnify any one of 4G network systems such as LTE700, LTE800, LTE1800, LTE2600 etc. They are frequently employed to signal blind places, including parking garages, offices, and homes.
A cellphone signal booster can work after installation if it is installed correctly and set up properly. Here are some steps to follow to set up a signal booster correctly:
1. Choose the right booster: Select a booster that is suitable for the type of signal you want to boost. Ensure that the booster supports the carrier frequency of your mobile operator.
2. Install the Outdoor Antenna: Install the outdoor antenna at a good height pointing towards the cellular tower from where you want to receive the signal. Ensure that it is grounded properly.
3. Install the Indoor Antenna: Install the indoor antenna at a good height, away from any obstructions, and in an area where you need to boost the signal.
4. Connect the Booster: Connect the outdoor antenna to the booster's input port and the indoor antenna to the booster's output port. Connect the power supply to the booster.
5. Adjust the Booster: Adjust the booster's gain level to a suitable level for your signal strength. Check the signal strength using your phone before and after adjusting the booster to ensure that it has been set up correctly.
6. Test and Verify: Once the installation and setup is complete, test the booster by making calls or browsing the internet. Check the signal strength on your phone to ensure that it has improved.
7. Ensure Compliance: Ensure that the booster complies with all relevant regulations and guidelines before installing it.
Features
1. Compact size with stable performance.
2. MGC available for both UL & DL.
3. AGC Alarms if interference occurs.
4. Auto shut off once severe self-oscillation.
5. LCD display to make operation easily.
6. Cost-effective for practical solutions.
7. Antenna isolation testing automatically.
8. High voice quality and fast data transmission.
9. Simple Structure & Easy installation.
Specs
|
Parameters |
Uplink |
Downlink |
|
|
Frequency Range |
LTE700 |
788~798MHz |
758~768MHz |
|
LTE800 |
832~ 862MHz |
791~ 821MHz |
|
|
LTE1800 |
1710 ~ 1755MHz |
2110 ~ 2155MHz |
|
|
LTE2600 |
2550~2570MHz |
2620~2690MHz |
|
|
Operation Bandwidth (-3dB) |
Wide Band |
||
|
Maximum Gain |
55dB |
60dB |
|
|
Output Power |
10dBm |
10dBm |
|
|
MGC (Manual Gain Control) |
31dB range/1dB step |
||
|
AGC (Automatic Gain Control) |
≧25dB |
||
|
Noise Figure |
≤ 6dB |
||
|
VSWR |
≦2.0 |
||
|
Group Delay |
≤1μs |
||
|
LED Alarm |
Power LED |
DC ON/OFF |
|
|
AGC LED |
Red, ALC≥10dB |
||
|
ISO LED |
Red, ALC≥25dB, RF stop working |
||
|
RF Connector |
N-Female |
||
|
Impedance |
50Ω |
||
|
Power Consumption |
5W |
||
|
Power Supply |
Input: AC 110~240V; Output: DC 5.9V/3A |
||
|
Operating Temperature |
-10℃~50℃ |
||
|
Environment Conditions |
IP30 |
||
|
Dimensions (Lx W x H) |
128*170*65mm |
||
|
Weight (N.W) |
≤1.5KG |
||
