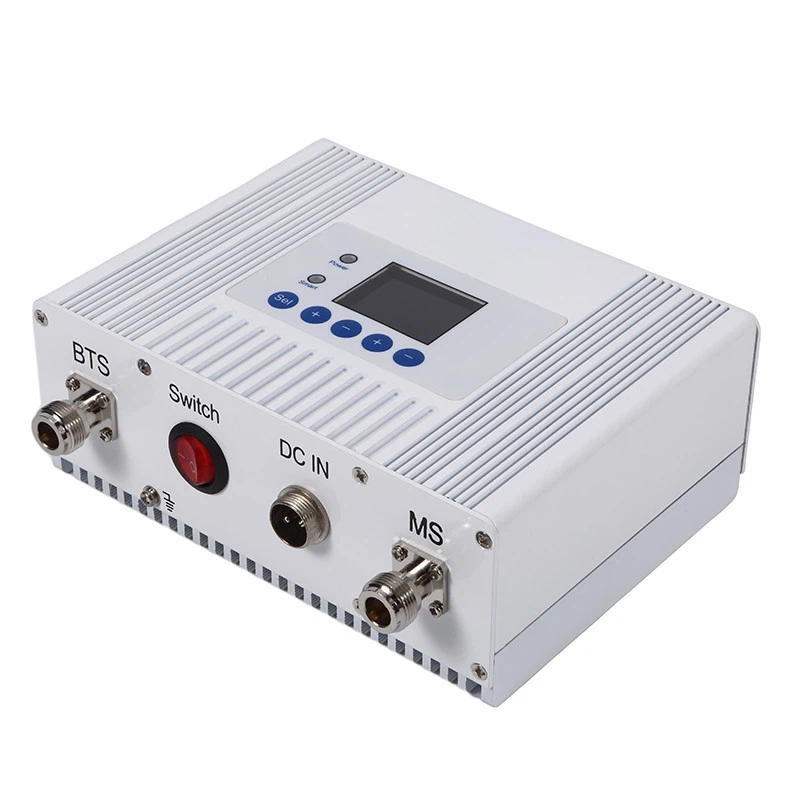

A mobile phone signal booster can be installed yourself without expert support. It consists of mainly two components. The antenna receives mobile network signals and transmits it to the amplifier. Amplifier improves the signal strength and re-transmits it. Mobile phones and other devices can receive amplified signals in the operational area.
The signal booster works by receiving the weak signal and then amplifying the signal so that your devices can function well without any signal issues. There are many benefits of using a signal booster and the most important are that the battery of your cell phone will last more. If the signal is good then the cell phone requires less power and you will save on battery life. However, if the signal is bad then the cell phone needs to use more power to receive files or to send files and your cell phone will lose its battery life fast. Data transfer also happens faster when then the signal is good, which is also a major benefit.
Raygnal mobile phone signal boosters maximum coverage area is 27,000 square feet.
Features
1. MGC available for both UL & DL.
2. AGC Alarms if interference occurs.
3. Auto shut off once severe self-oscillation.
4. LCD display to make operation easily.
5. Cost-effective for practical solutions.
6. Antenna isolation testing automatically.
7. High voice quality and fast data transmission.
8. Good Heat-dissipation.
Specs
|
Parameters |
Uplink |
Downlink |
|
|
Frequency Range |
LTE800 |
832 ~ 862MHz |
791 ~ 821MHz |
|
CDMA800 |
824-849MHz |
869-894MHz |
|
|
LTE700 |
704~ 716MHz |
734 ~ 746MHz |
|
|
DCS |
1710 ~ 1785MHz |
1805 ~ 1880MHz |
|
|
PCS |
1850-1910MHz |
1930-1990MHz |
|
|
WCDMA |
1920 ~ 1980MHz |
2110 ~ 2170MHz |
|
|
LTE2600 |
2500~2570MHz |
2620 ~ 2690MHz |
|
|
Operation Bandwidth (-3dB) |
Wide Band |
||
|
Maximum Gain |
65dB |
70dB |
|
|
Output Power |
15dBm |
20dBm |
|
|
MGC (Manual Gain Control) |
31dB range/1dB step |
||
|
AGC (Automatic Gain Control) |
≧25dB |
||
|
Spurious Emission |
9KHz~1GHz |
≦-36dBm |
|
|
1GHz~12.75GHz |
≦-30dBm |
||
|
Noise Figure |
≤ 6dB |
||
|
VSWR |
≦2.0 |
||
|
Group Delay |
≤1μs |
||
|
LED Alarm |
Power LED |
DC ON/OFF |
|
|
AGC LED |
Red, ALC≥10dB |
||
|
ISO LED |
Red, ALC≥25dB, RF stop working |
||
|
RF Connector |
N-Female |
||
|
Impedance |
50Ω |
||
|
Power Consumption |
5W |
||
|
Power Supply |
Input: AC 110~240V; Output: DC 5.9V/3A |
||
|
Operating Temperature |
-10℃~50℃ |
||
|
Environment Conditions |
IP30 |
||
|
Dimensions (Lx W x H) |
128*170*65mm |
||
|
Weight (N.W) |
≤1.9KG |
||
