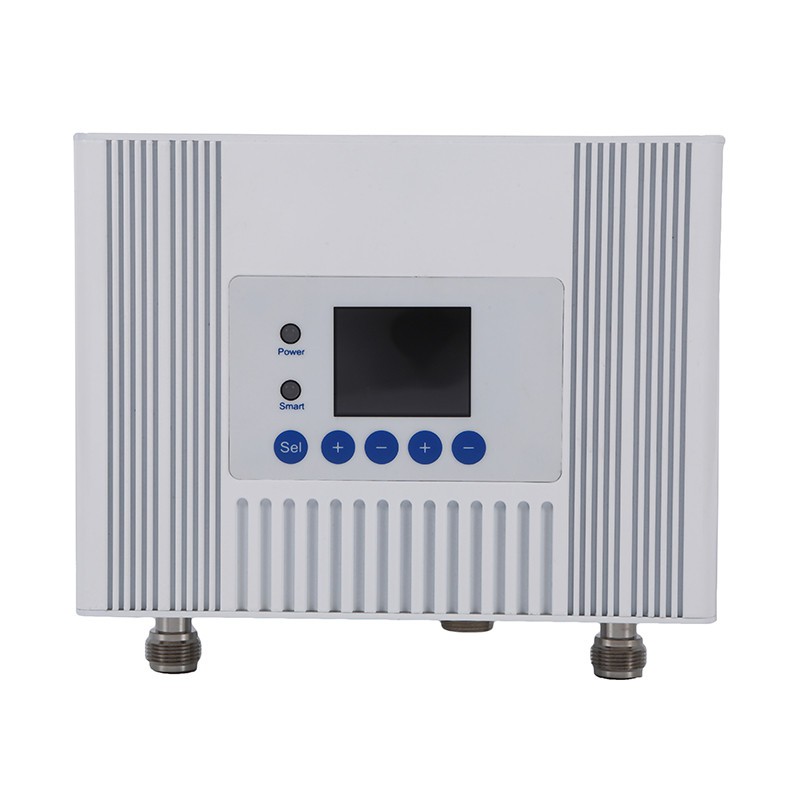

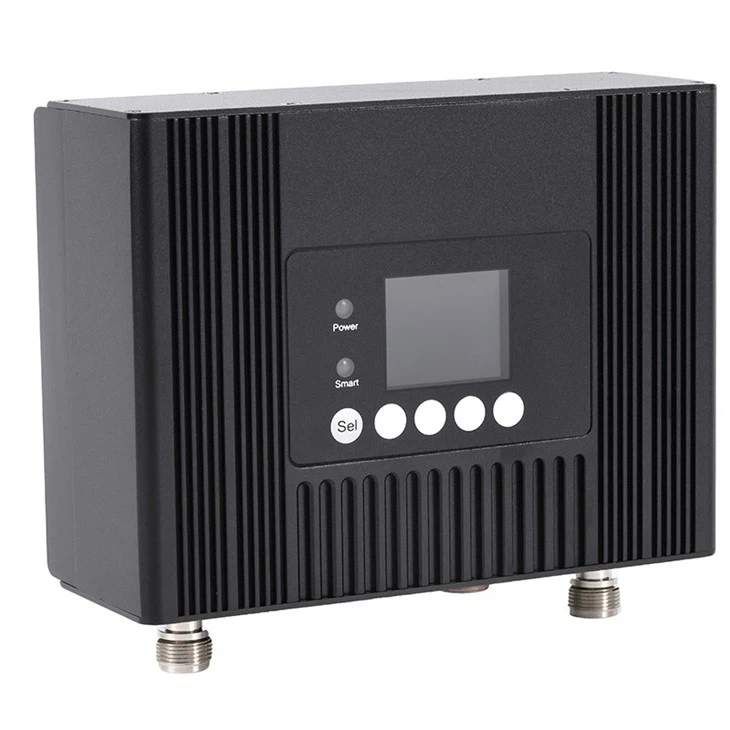

An airtel signal booster, also known as a signal amplifier, is a tool for enhancing cell phone reception in spots where the signal is spotty or challenging to access. The following are some important characteristics and advantages of using an Airtel signal booster:
1. Multiple device support: A single signal amplifier can improve the signal strength of multiple devices simultaneously, including smartphones, tablets, laptops, and data cards.
2. No interference: Unlike some other network connectivity solutions, a signal amplifier does not interfere with other electronic devices in the vicinity of its installation.
3. Cost-effective: Saving users from potentially costly and disruptive installation of additional cellular transmission infrastructure such as a network tower.
In general, cellular signal boosters are an affordable and practical way to increase cellular network connectivity in a range of different applications.
Features
1. Compact size with stable performance.
2. MGC available for both UL & DL.
3. AGC Alarms if interference occurs.
4. Auto shut off once severe self-oscillation.
5. LCD display to make operation easily.
6. Cost-effective for practical solutions.
7. Antenna isolation testing automatically.
8. High voice quality and fast data transmission.
9. Simple Structure & Easy installation.
Specs
|
Parameters |
Uplink |
Downlink |
|
|
Frequency Range |
LTE700 |
788~798MHz |
758~768MHz |
|
LTE800 |
832~ 862MHz |
791~ 821MHz |
|
|
LTE1800 |
1710 ~ 1755MHz |
2110 ~ 2155MHz |
|
|
LTE2600 |
2550~2570MHz |
2620~2690MHz |
|
|
Operation Bandwidth (-3dB) |
Wide Band |
||
|
Maximum Gain |
65dB |
70dB |
|
|
Output Power |
15dBm |
20dBm |
|
|
MGC (Manual Gain Control) |
31dB range/1dB step |
||
|
AGC (Automatic Gain Control) |
≧25dB |
||
|
Noise Figure |
≤ 6dB |
||
|
VSWR |
≦2.0 |
||
|
Group Delay |
≤1μs |
||
|
LED Alarm |
Power LED |
DC ON/OFF |
|
|
AGC LED |
Red, ALC≥10dB |
||
|
ISO LED |
Red, ALC≥25dB, RF stop working |
||
|
RF Connector |
N-Female |
||
|
Impedance |
50Ω |
||
|
Power Consumption |
5W |
||
|
Power Supply |
Input: AC 110~240V; Output: DC 5.9V/3A |
||
|
Operating Temperature |
-10℃~50℃ |
||
|
Environment Conditions |
IP30 |
||
|
Dimensions (Lx W x H) |
128*170*65mm |
||
|
Weight (N.W) |
≤1.5KG |
||
