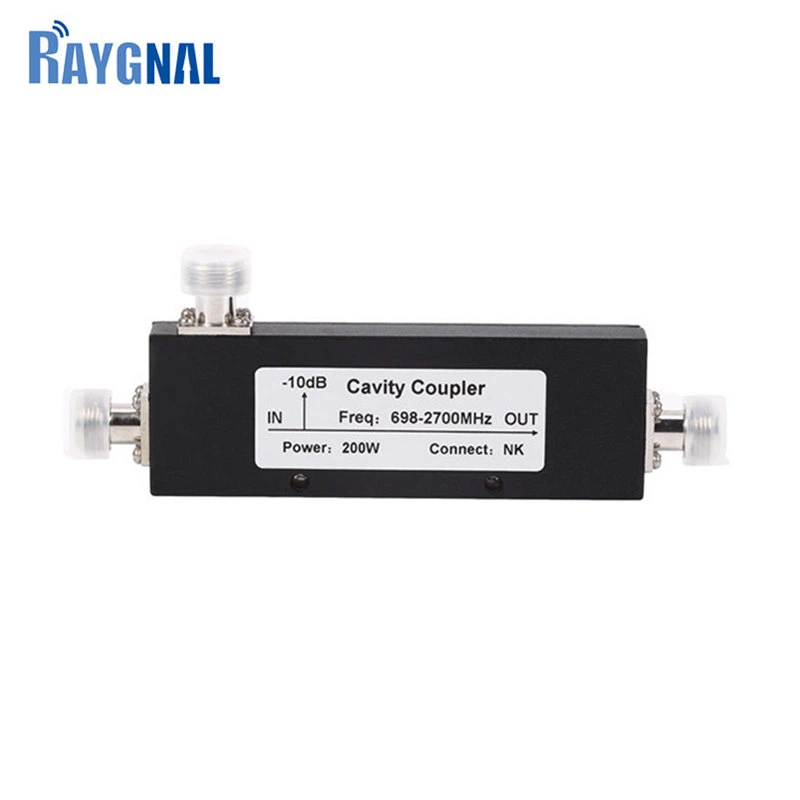

Raygnal 5dB~30dB cable cavity coupler with N female connector
Cavity filter is designed with Aluminium to get performance of splitting the RF signals. It can support 698-2700MHz for widely use at indoor distribution systems. Clients can select from 5dB to 30dB range for different applications. Waterproof type is able to be tailored if needed.
Features
1. Split the signal easily
2. Wideband frequency from 698MHz to 2700MHz
3. Easy Installation
Specs
|
Frequency |
698MHz ~ 2700MHz |
||||||
|
Coupler (dB) |
05 |
06 |
07 |
10 |
15 |
20 |
30 |
|
Range (±) |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.5 |
1.5 |
|
Loss(dB) |
≤2.1 |
≤1.70 |
≤1.40 |
≤0.80 |
≤0.40 |
≤0.30 |
≤0.25 |
|
VSWR |
1.25:1 |
||||||
|
Directional |
20 dB |
||||||
|
Power |
200 W |
||||||
|
Inter modulation |
-140 dBc @ 2X43dBm |
||||||
|
Connector |
N-Female |
||||||
|
Impedance |
50Ω |
||||||
|
Environment Conditions |
IP64 |
||||||
|
Temperature |
-35℃~+60℃ |
||||||
|
Weight |
200g |
||||||
