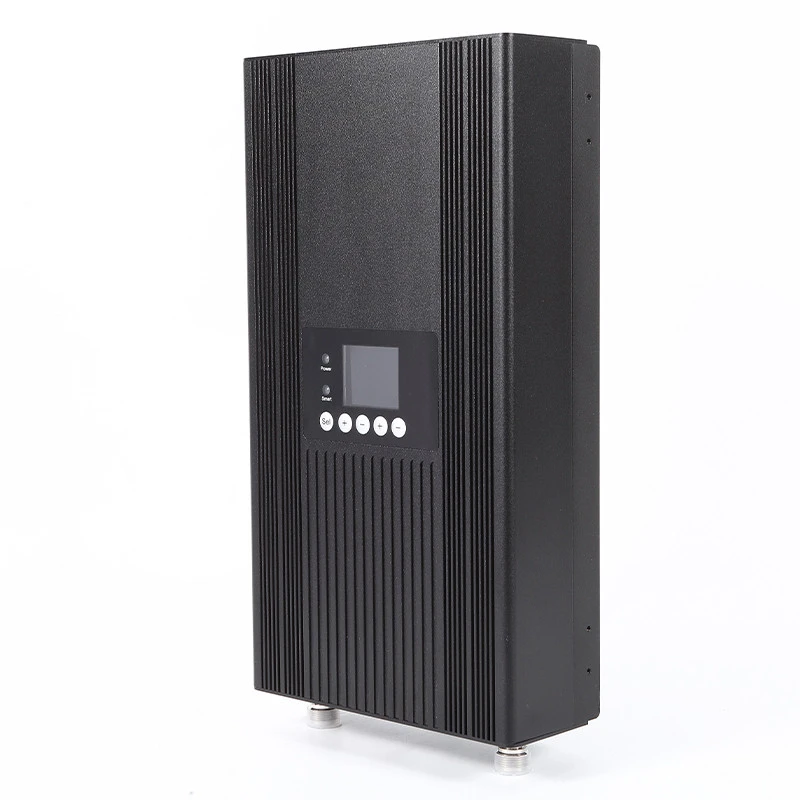

An indoor phone signal booster works by re-transmitting signals, usually at a higher power, that are received in the transmit and receive bands of cellular networks from a base station. The purpose of these devices is to increase the signal strength that a cell phone receives in low signal strength areas. As a result, the booster may be installed a little higher up or in an area of the house or building where the signal can be picked up better, while the cellphone may typically be in a location with poorer reception. Keep in mind that the signal's quality (error rate) might not be enhanced. The cellphone receives the strengthened signal and transmits a response back to the booster, which then broadcasts the response back to the cellular network.

Features

1. MGC for both UL & DL.

2. AGC Alarms if interference occurs.

3. Auto shut off once severe self-oscillation.

4. LCD display to make operation easily.

5. Antenna isolation testing automatically.

6. High voice quality and fast data transmission.

7. Good Heat-dissipation.

8. Support five systems simultaneously.

Specs

Parameters		Uplink	Downlink
Frequency Range	LTE800	832 ~ 862MHz	791 ~ 821MHz
	CDMA800	824-849MHz	869-894MHz
	GSM&EGSM	880 ~ 915MHz	925 ~ 960MHz
	DCS	1710 ~ 1785MHz	1805 ~ 1880MHz
	PCS	1850-1910MHz	1930-1990MHz
	WCDMA	1920 ~ 1980MHz	2110 ~ 2170MHz
	LTE2600	2500~2570MHz	2620 ~ 2690MHz
Operation Bandwidth (-3dB)		Wide Band
Maximum Gain		60dB	65dB
Output Power		10dBm	10dBm
MGC (Manual Gain Control)		31dB range/1dB step
AGC (Automatic Gain Control)		≧25dB
Noise Figure		≤ 6dB
VSWR		≦2.0
Group Delay		≤1μs
LED Alarm	Power LED	DC ON/OFF
	AGC LED	Red, ALC≥10dB
	ISO LED	Red, ALC≥25dB, RF stop working
RF Connector		N-Female
Impedance		50Ω
Power Consumption		5W
Power Supply		Input: AC 110~240V; Output: DC 10V/10A
Operating Temperature		-10℃~50℃
Environment Conditions		IP30
Dimensions (Lx W x H)		31017065mm
Weight (N.W)		≤6KG
